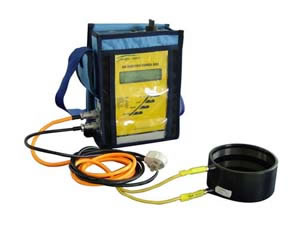

AH Electrofusion Machine

AH Electrofusion Machine

AH electrofusion welding machine is the latest generation of electrofusion machines for welding all kinds of pipes and fittings. This device can be activated on remote controlled basis by its users. AH electrofusion welding machine is specially used for sewage and drainage pipe electro-fusion. This electrofusion equipment is designed with small volume, light weight and is easy to transport. AH electrofusion welding machine works with 220V AC power supply. The welding data is stored in the RAM (random access memory) of the electrofusion machine. The external memory can later be read out by WiCon 2000 or directly printed from the device. During operation, operators only need to choose the required output wire, connect the power, then to press the fusion button, the fusion will start. The electrofusion welding machine or electrofusion machine adopts SCM as the main controller to control the whole fusion phases. When fusion starts, the fusion indicator flickers. When fusion ends, the electro-fusion machine automatically stops the fusion.

1. The AH electrofusion welding machine is matched with laser scanning tool to read the barcode information and execute the fusion according to the barcode. It can check operation errors and reminds the operator automatically.
2. AH electrofusion machine has data memory capacity, which can ensure quick data downloading and printing. Meanwhile, it is easy for management and tracking after welding.
3. The two-lined display is brightly illuminated and well readable. The temperature compensated from -10°C up to 60°C.

Technical Parameters of AH Electrofusion Welding Machine:

Name AH Electrofusion Machine Size 264mm×184mm×96mm
Voltage 220±15 V AC Frequency 50 Hz
Power 1 KVA Fusion Range Φ50mm to Φ 250mm
Socket Size Φ2.5mm, Φ4.0mm Environ Temp. -5 to 40ºC
Moisture 70% Weight 1.6 kg

Jilin Songjiang Smart Joint Co., Ltd is a professional manufacturer and supplier of electrofusion welding machines in China. In addition to this electrofusion machine (electrofusion equipment), we also produce butt fusion machine, electrofusion fittings, butt fusion fittings, PE transitional fittings, irrigation fittings, stub flange fittings, and so on. With high quality assurance, our fusion machines are exported to Algeria, UAE, Egypt, Australia, Brazil, Poland, Denmark, Germany, Canada, Libya, Malaysia, the United States, Peru, Turkey, New Zealand, Iran, Israel, Japan, etc.
